Augers
Auger Shop
Extensive range
In our Auger Shop we offer an extensive range of augers in a variety of sizes for all kinds of industries such as agricultural, mining, rendering and food grade.
Machining in house so give you a complete auger solution fitted and ready for install.
In-house or onsite repairs - and anything else required for those wanting to repair or construct their own equipment.
Flanges, bearing plates, drive mounts, shafts, hanger bearings, inlet and discharge transitions, drive shafts, tail/stub shafts, lugs and more…
Products and services

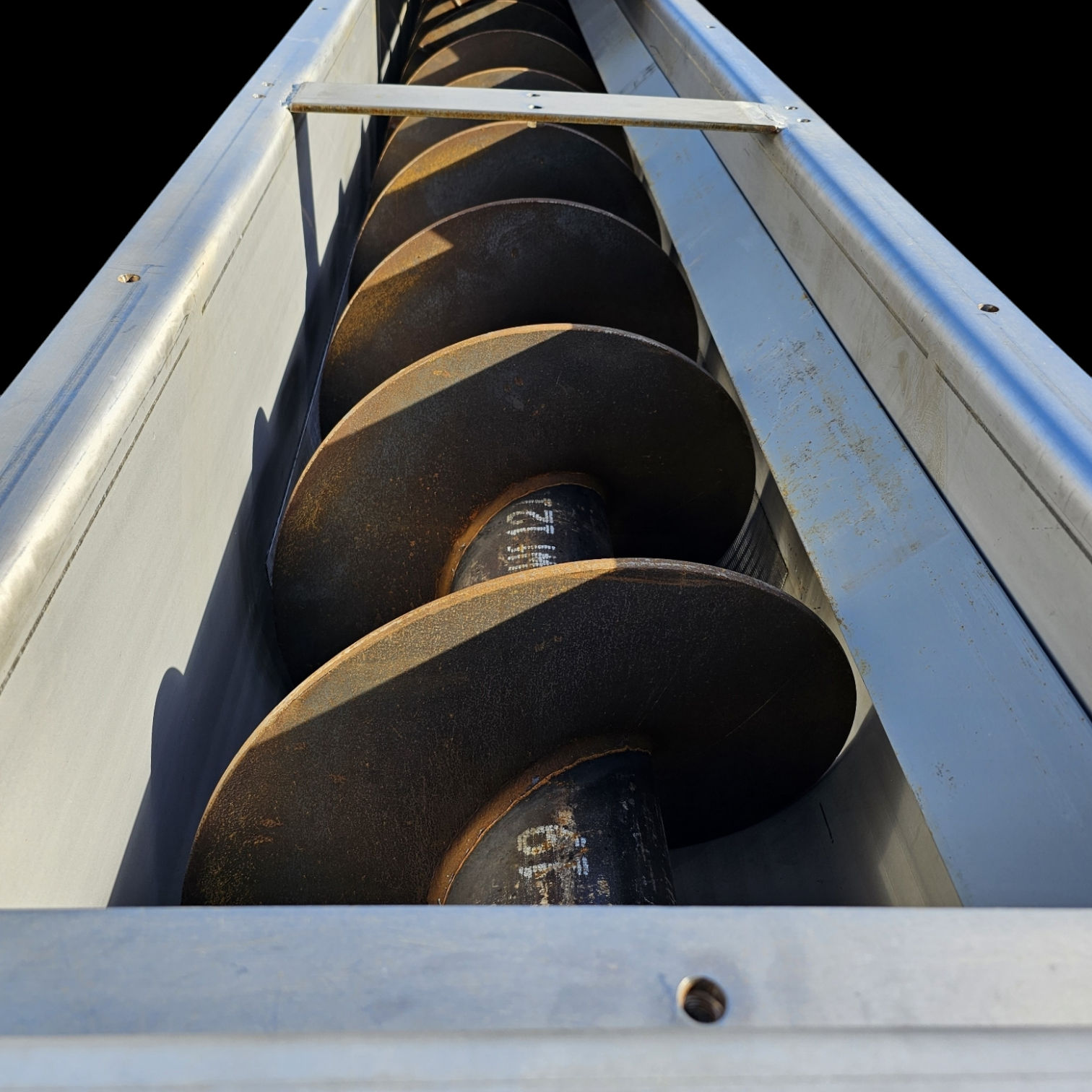

Horizontal Transfer and Vertical Unload Augers
Vertical Mixing Silo Augers - up to 10 tonne
Rendering and Raw Materials Bin Augers
Loader Bucket Augers
Permanent or semi permanent Utility Augers
Portable Grain, Woodchip and Coal Augers
Shipping Augers
Stainless 316 Food Grade Augers
Standard Flighting
Standard or special designed Auger flighting. We can form our standard flighting to a precise diameter and pitch and stitch or continuously weld to most pipe and shaft sizes.
We can manufacture to a variety of diameters and pitches ranging from 20mm through to 2.0 meters and thicknesses from 2mm to 25mm thick.
Variable and double pitched Flighting is also available to suit your requirements.
Finishes: mild steel, bis-alloy, stainless 304 and 316 Food Grade.
Tapered Flighting
We can form our tapered flighting to a precise diameter and pitch and to fit onto most pipe or shaft sizes.
We can manufacture to a variety of diameters, pitches and thicknesses.
Finishes: mild steel, bis-alloy, stainless 304 and 316 Food Grade.
Standard or Double Flight Ribbon Mixers
We can form a continuous, one-piece helix formed by special equipment into various diameter and pitches.
Finishes: mild steel, bis-alloy, stainless 304 and 316 Food Grade.
Auger Flighting
Experience the pinnacle of precision engineering with our versatile flighting solutions. Our standard flighting offers precise diameters and pitches, with the ability to stitch or continuously weld to most pipe and shaft sizes. Ranging from 20mm to 2.0 meters in diameter and 2mm to 25mm in thickness, our flighting options are tailored to meet your specific needs. We also provide variable and double pitched flighting, along with tapered flighting to fit various pipe and shaft sizes. Completing our range are standard or double flight ribbon conveyors, featuring continuous, one-piece helixes formed by specialized equipment. With finishes including mild steel, bisalloy, and stainless steel grades 304 and 316 Food Grade, our flighting solutions ensure durability and performance. Elevate your projects today and explore our comprehensive flighting range.

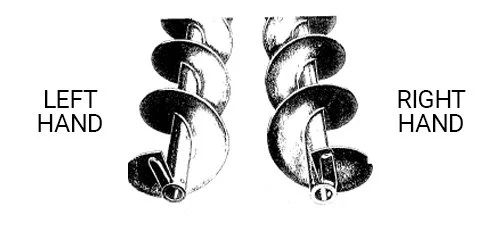

Flight Direction
A conveyor Screw is either right hand or left hand depending on the form of the helix
The hand of screw is easily determined by looking at the end of the screw. The screw pictured to the left has the flight helix wrapped around the pipe in a counter-clockwise direction, or to your left same as left hand threads on a bolt. This is arbitrarily termed a left hand screw.
The screw pictured to the right has the flight helix wrapped around the pipe in a clockwise direction, or to your right same as right hand threads on a bolt. This is termed right hand screw.
A conveyor screw viewed from either end will show the same configuration. If the end of the conveyor screw is not readily visible, then by merely imagining that the flight has been cut, with the cut end exposed, the hand of screw may be easily determined.
Determining a screw rotation
The below diagrams are a simple means of determining screw rotation. When the material flow is in the direction away from the end being viewed, a right-hand screw will turn counter-clockwise and a left-hand screw will turn.
For ordering or quote requests, download our quick and easy form and return via email
Various Augers
Discover our extensive range of augers tailored to meet all your requirements.
With our manufacturing capabilities, we can provide augers in various lengths, diameters, and materials. From vertical mixing silo augers capable of handling up to 10 tonnes, loader bucket augers, and permanent or semi-permanent utility augers, to horizontal transfer augers, vertical unload augers, shipping augers, coal augers, woodchip augers, grain augers, raw materials bin augers, rendering augers, and stainless 316 Food Grade augers. Whatever your needs may be, we have the perfect auger solution for you.
Spiral Welded Pipe
We are fully equipped to supply a variety of diameters ranging from 100mm through to 500mm in either 2mm or 3mm wall thickness. This has a multitude of uses including auger casing, ducting, light culvert and pipe casing
Available in the following standard sizes:
Diameter: 100mm, 130mm, 150mm, 180mm, 200mm, 230mm, 250mm, 280mm, 300mm, 330mm, 350mm, 400mm, 450mm, 500mm.
Wall thickness: 2mm or 3mm
Length: 6.5 meters
Finish: Mild Steel
All diameter nominal bores can vary slightly between batches.
Other sizes, lengths and finishes are available on request - Setup charges may apply.
Portable Grain Augers
Designed for long life, extreme strength and robust construction
The Todd Portable Grain Augers are designed for extreme strength and manufactured using 3mm thick tubing and flighting for high wear areas to provide a long-lasting service.
Our standard 8, 9 & 10" Models are available from 35 ft to 60 ft.
Simple to operate & maintain
Electric Driven with SEW Drive or Belt Drive PTO
Hand crank winch
Intake Hopper
Tow hitch
All necessary shields
Discharge Spout
Tapered roller bearing hubs
Finishes: Painted or Galvanized
